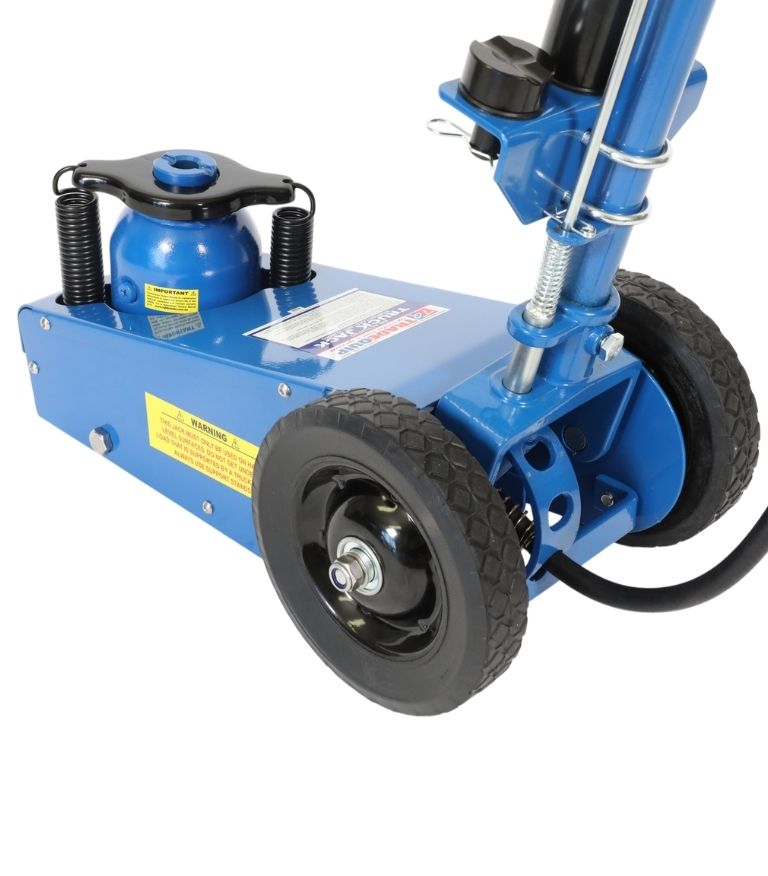

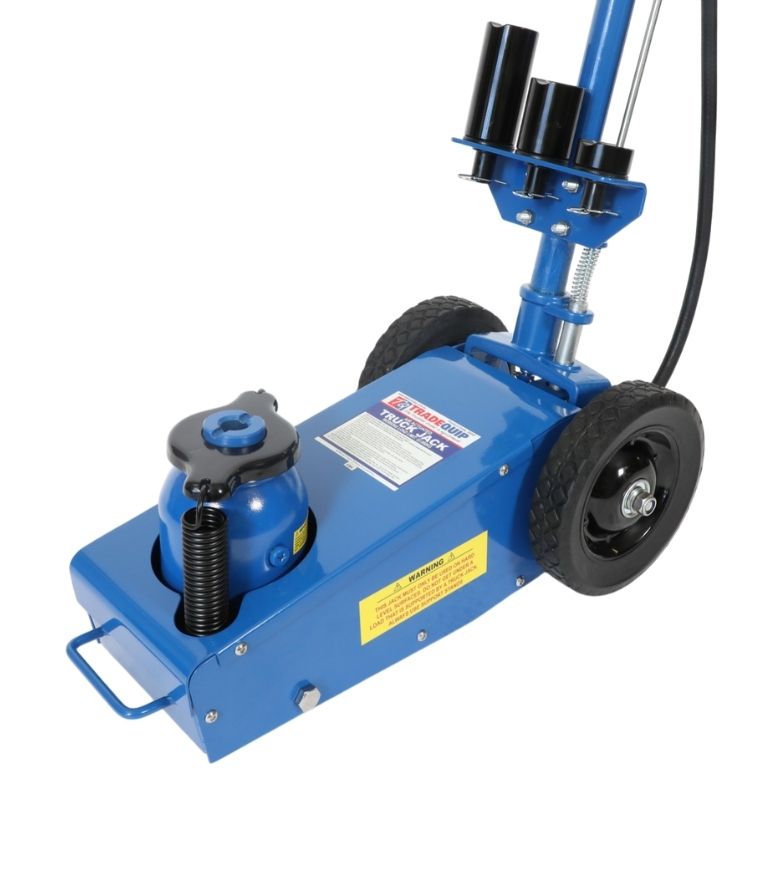

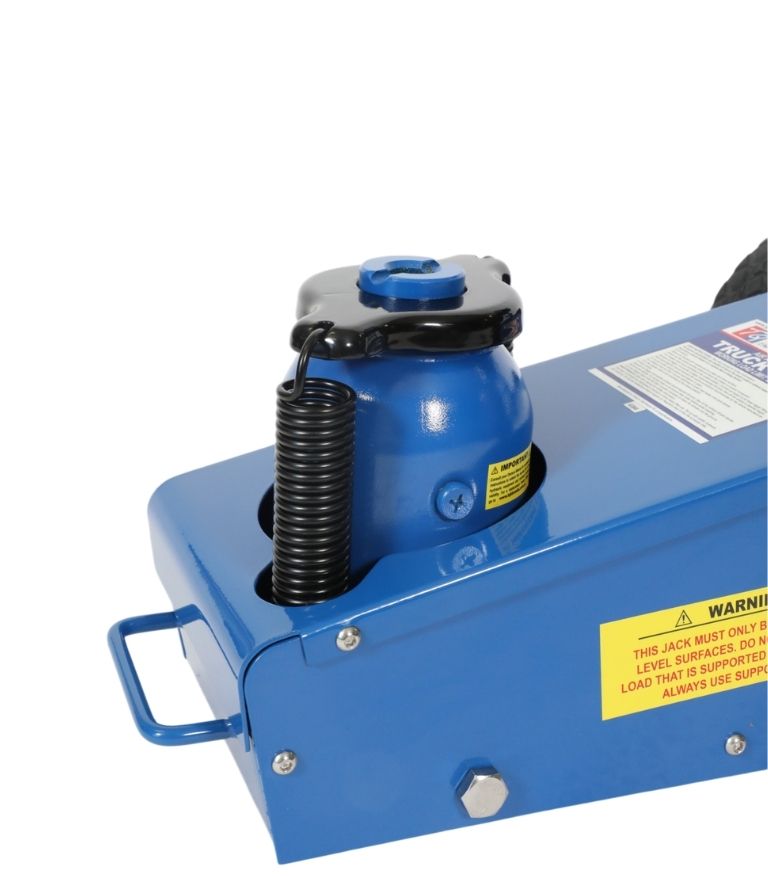

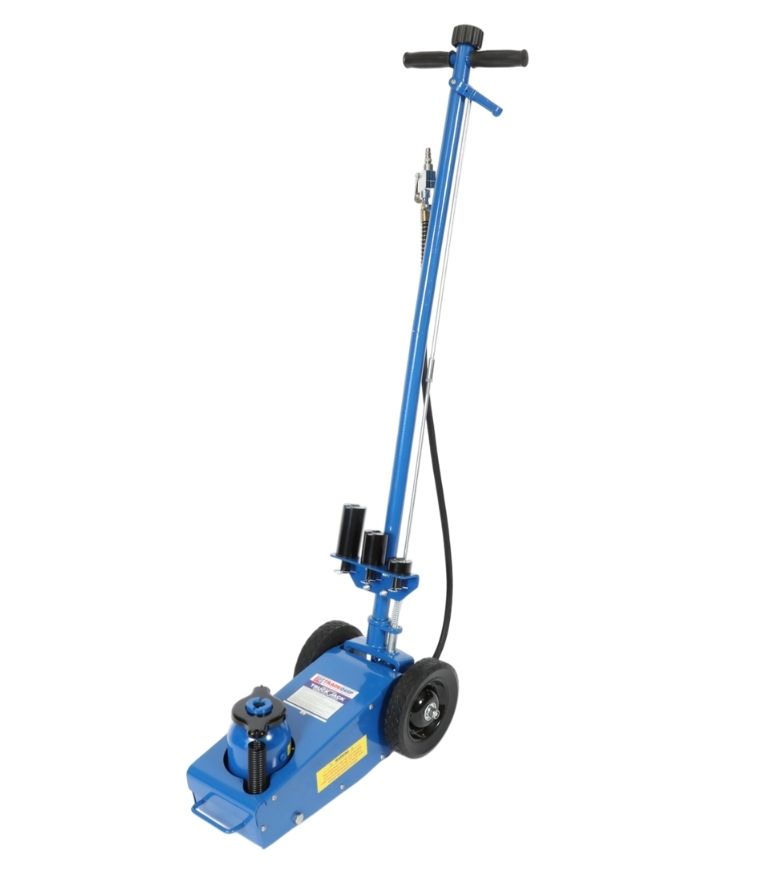

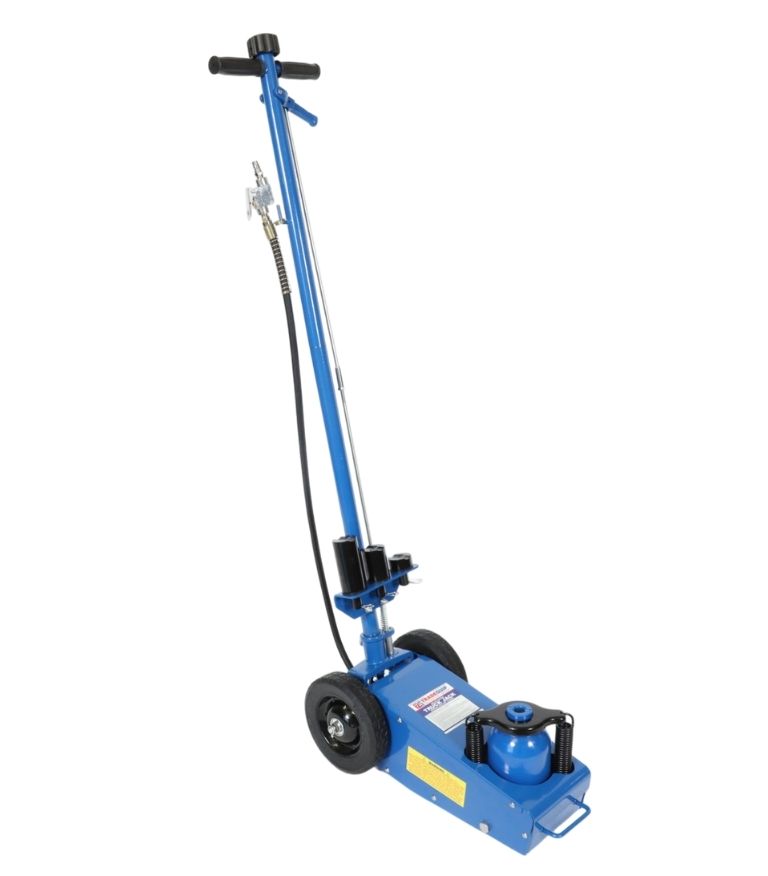

Truck Jack Air Actuated 22,000kg Truck Jack Air Actuated 22,000kg

Truck Jack Air Actuated 22,000kg

  • Product Code: 2004T
  • Brand: TradeQuip Professional

This TradeQuip "Made for the Trade" pneumatic heavy-duty 22,000kg Air Actuated Hydraulic Quick Lift Truck Jack has a powerful air motor to lift heavy loads. The efficient quick lift system is designed to ensure the lifting ram comes in contact with the load faster. The compact design easily fits between dual tandem axles. Ideal for lifting axles, farm vehicles, heavy-duty machinery, industrial equipment and more. Includes height adaptors.   (Previous models include product code/s; 2003T)

Features:

  • Professional quality rugged steel construction
  • Wear-resistant quality sealing O-rings
  • Strong hydraulic pump
  • Temperature-resistant hydraulic oil
  • Treated and polished piston and ram
  • Built-in bypass hydraulic safety overload system
  • Compact design easily fits between dual tandem axles

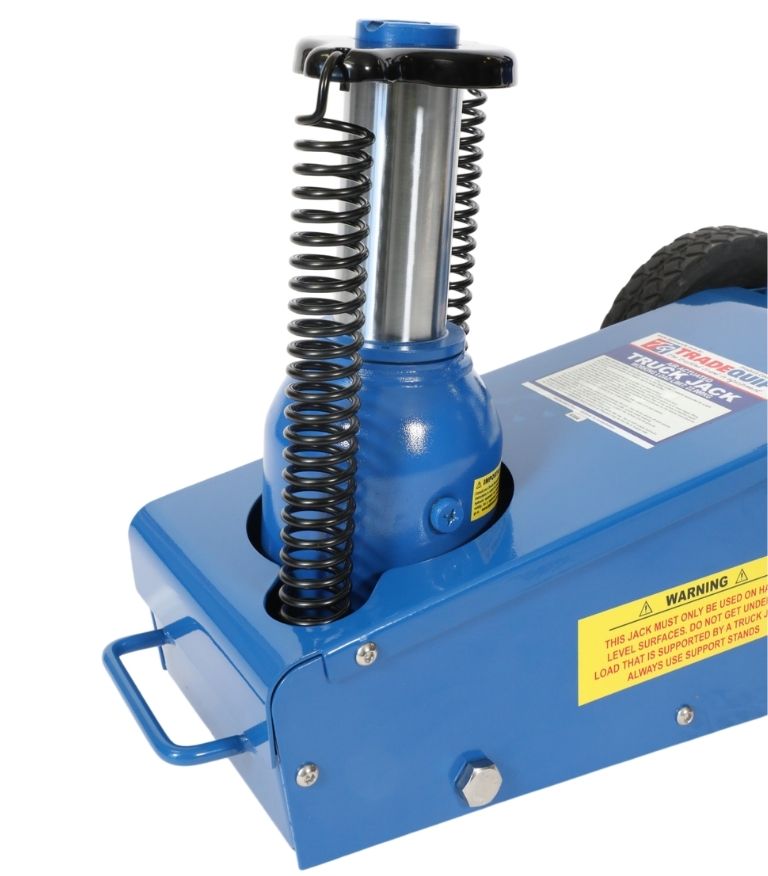

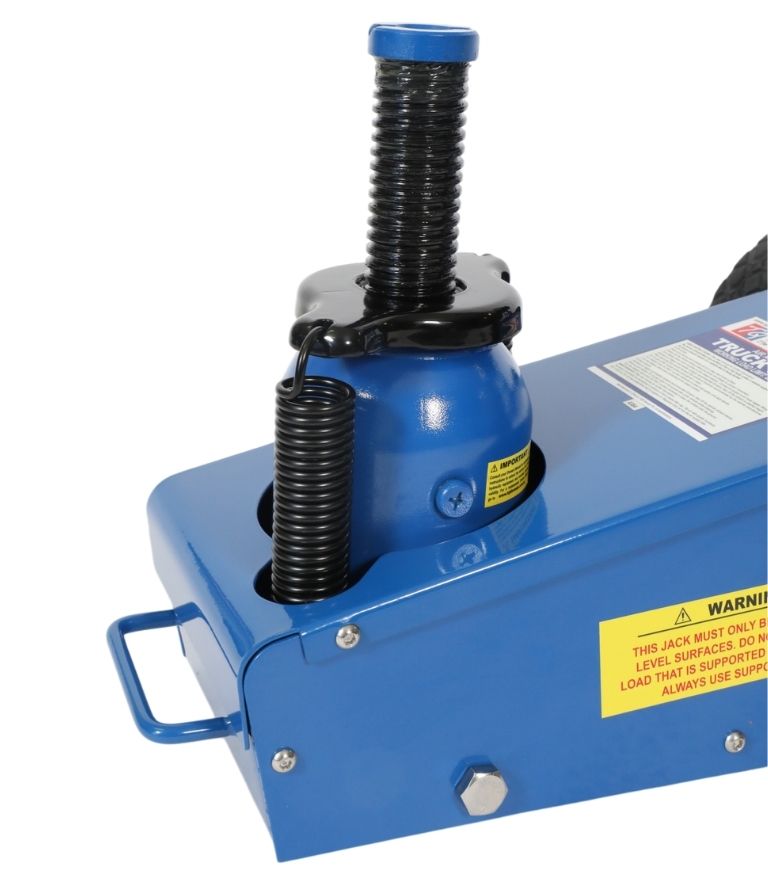

  • Quick Lift lifting ram comes in contact with the load faster

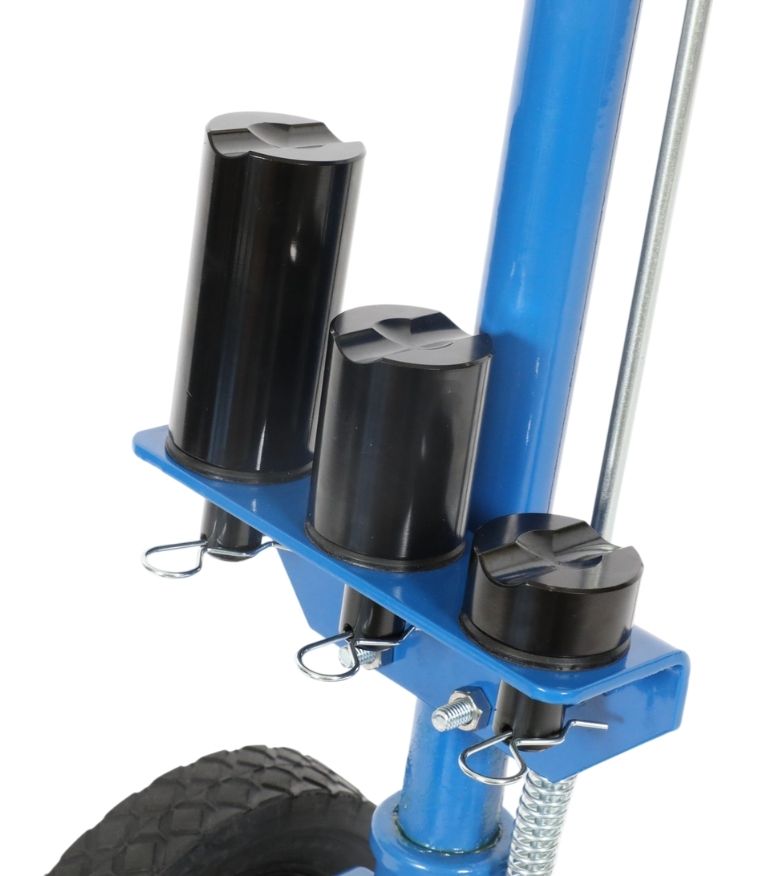

  • Convenient & efficient height adaptors

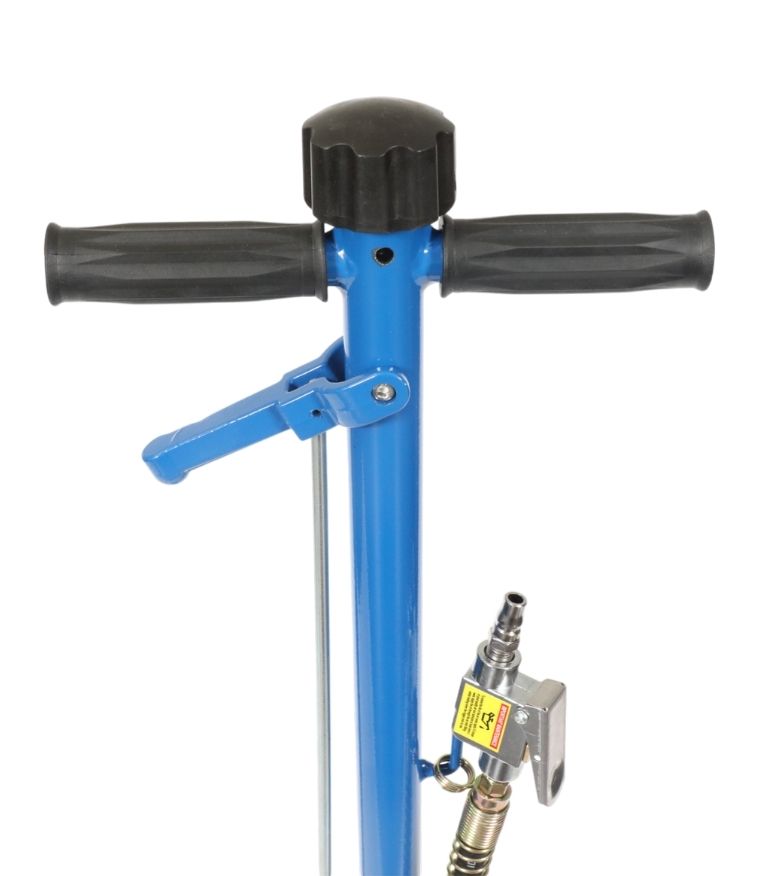

  • 3-position pumping handle
  • High quality lead-free paint ensures long-lasting wear and prevents rust
  • Oil, grease and dirt-resistant finish for easy cleanup

Specifications:

  • Safe Working Capacity: 22,000kg
  • Lift Range: 225-552mm
  • Hydraulic Lift: 124mm
  • Adjustable Height: 103mm
  • Air Supply: 110-125psi

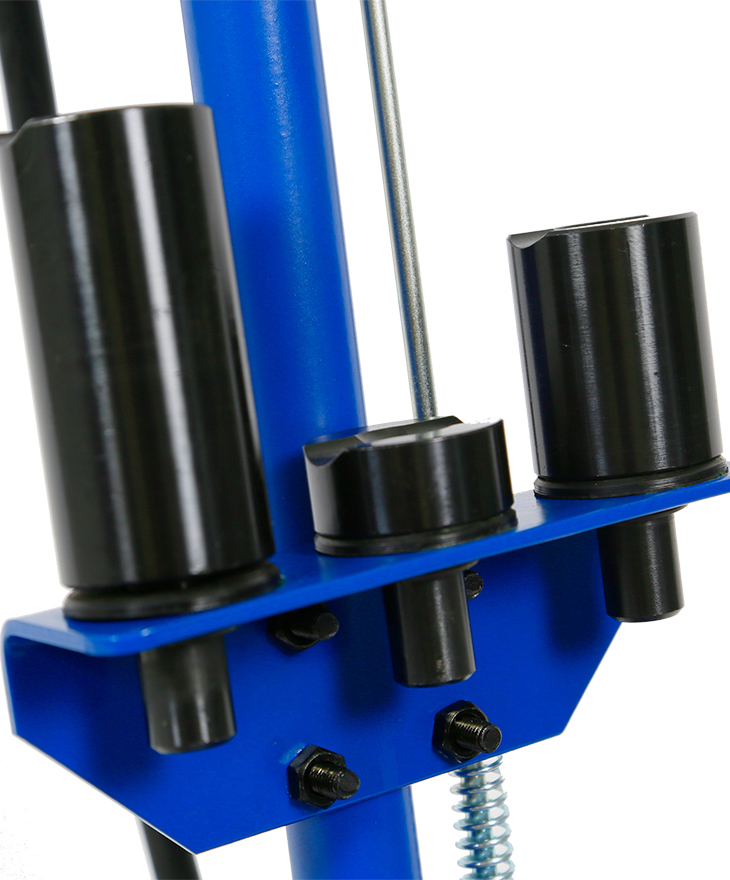

  • Adaptor Sizes:  21mm, 60mm 100mm
  • Handle Length: 1160mm
  • Chassis: 560L x 230H x 320W mm
  • Wheel Diameter: 200mm
  • Nett Weight: 45kg
  • Carton: 675(L) x 345(W) x 250(H)mm
  • Gross Weight: 47kg
    Note: Use only high quality hydraulic fluid  eg.ISO68Wear-resistant quality sealing O-rings

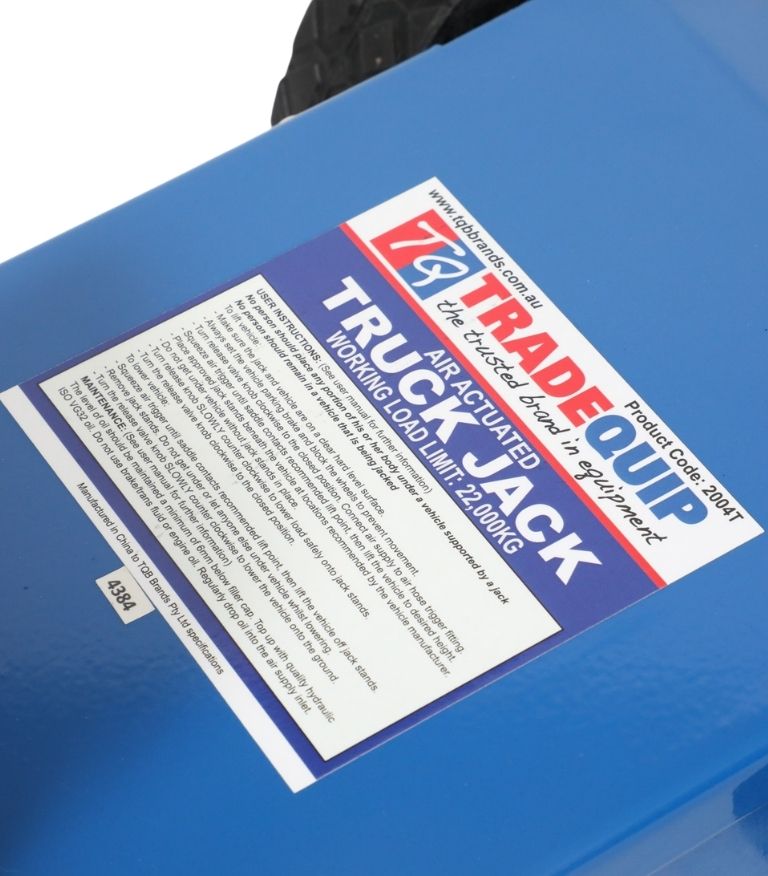

NOTE: This Garage Jack must only be used on hard level surfaces and be free to roll during lifting and lowering. DO NOT get under a vehicle that is only supported by this Garage Jack. ALWAYS USE JACK STANDS!

WARNING: Always ensure the vehicle wheels are chocked before lifting.  This Garage Jack is a lifting and lowering device only and is designed for lifting part of the total vehicle. Do not move or dolly the vehicle whilst the vehicle is on this Garage Jack.

Intended Use

For professional medium duty use on truck, agriculture, construction, mining, automotive, and marine applications where lifting and lowering is required.

Print version       Owners Manual       Product Guide        Bleed Instructions        Lubrication Guide        Product Information Tips

 About the TradeQuip brand

The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment by professional users. With proven and trusted “Made for the Trade” reliability, 'TradeQuip'  branded products offer the very best in performance for an affordable price. All backed by a 1year trade guarantee across 1,000+ distributors Australia wide.
