Auxiliary Stand 7,000kg
- Product Code: BAUXS7T
- Brand: Borum Industrial

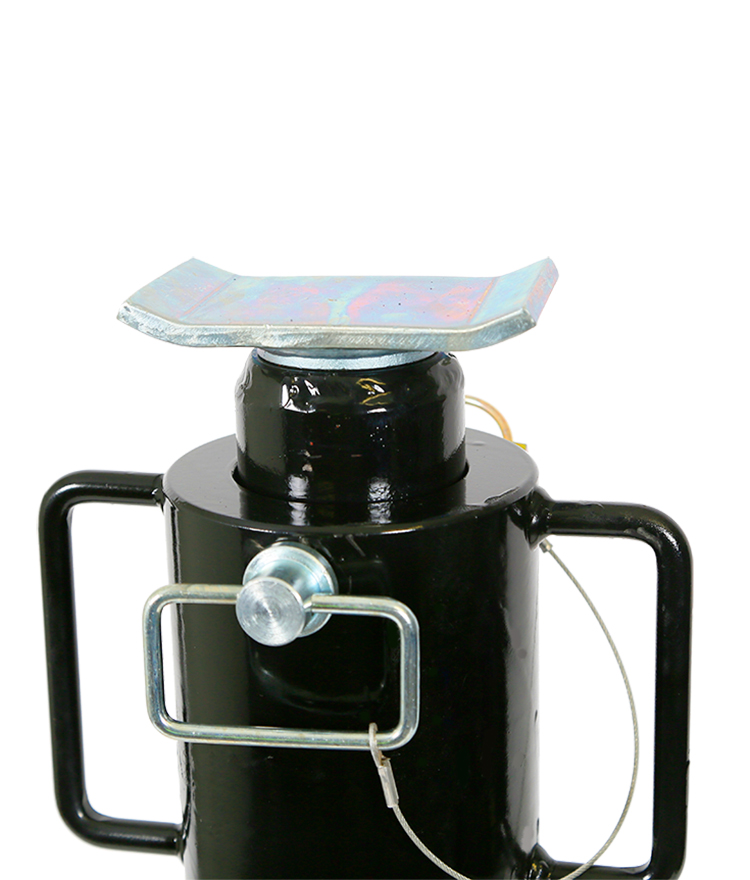

The BORUM Industrial Heavy Duty Auxiliary Stand is a reinforced pin style vehicle stand with a heavy duty design and support bracing system to sustain heavy vehicle loads up to 7,000kg. It's adjustable to match the job with a 1255mm minimum lift height and 1905mm maximum lift height !! Featuring Heavy-Duty Industrial design, this tough stand is ideal for use under 2 post and 4 post vehicle lifts. With adjustable height increments, 3 choices of saddle attachments, and a stable tripod design, the feet (with base plates) securely hold this auxiliary stand in place when the spring loaded swivel castor wheels are under load. This heavy duty stand is mobile when needed and stable under load, so its a very handy peice of equipment when working under a vehicle lift. This tripod design ensures complete stability, even when your workshop floor is not perfectly flat.
Features
- Heavy duty design and support bracing system to sustain heavy ve
hicle loads - Manufactured from high-grade steel and built to exacting standards for quality and durability
- Fitted with spring loaded castor wheels to ensure easy movement around the workshop
- Fitted with spring loaded support beam
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint is oil, grease and dirt-resistant for easy cleanup
- High strength locking pin
- Controlled pin holes for easy height adjustments
- Turned post slide for easy quick adjustments
Specifications
- Safe Working Capacity: 7,000kg
- Maximum Height: 1905mm
- Minimum Height: 1295mm
- 3 saddle options: 90mm, 120mm, up to 150mmØ
- Adjustable Pin Heights: 8 (75mm increments)
- Distance between Caster wheels: 630mm (Centre wheel to centre wheel measurement)
- Nett Weight: 65kg
- Carton: 1130 x 370 x 320mm
- Weight: 68kg
Intended Use
To support and/or stabilise a vehicle that is raised by a 2or4 post hoist or in-ground lift. Should always be used in pairs.
NOTE: Sold individually but recommended to be used in pairs
IMPORTANT: NEVER get beneath a vehicle that is only supported by a jack. ALWAYS chock the vehicle wheels and use jack stands.
