Air/Hydraulic Press 50,000kg

Product Code: 2048T
Brand: TradeQuip Professional

NEW Product

This "TradeQuip "Made for the Trade" 50,000kg Air/Manual Workshop Press is perfect for straightening, stamping, bending and pressing any component that is hard to handle. With it's very wide 713mm bed width and 210mm inside bed gap this press becomes one of the most diverse Workshop Presses in the TradeQuip range. The ram is powered by a manual two-speed pump, and the non-slip bed winch features a steel cable roller for easy raising and lowering of the press bed.

Features:

Heavy-duty frame constructed of high-grade steel and built to exacting standards for quality and durability
Hand operated air trigger ram travel control

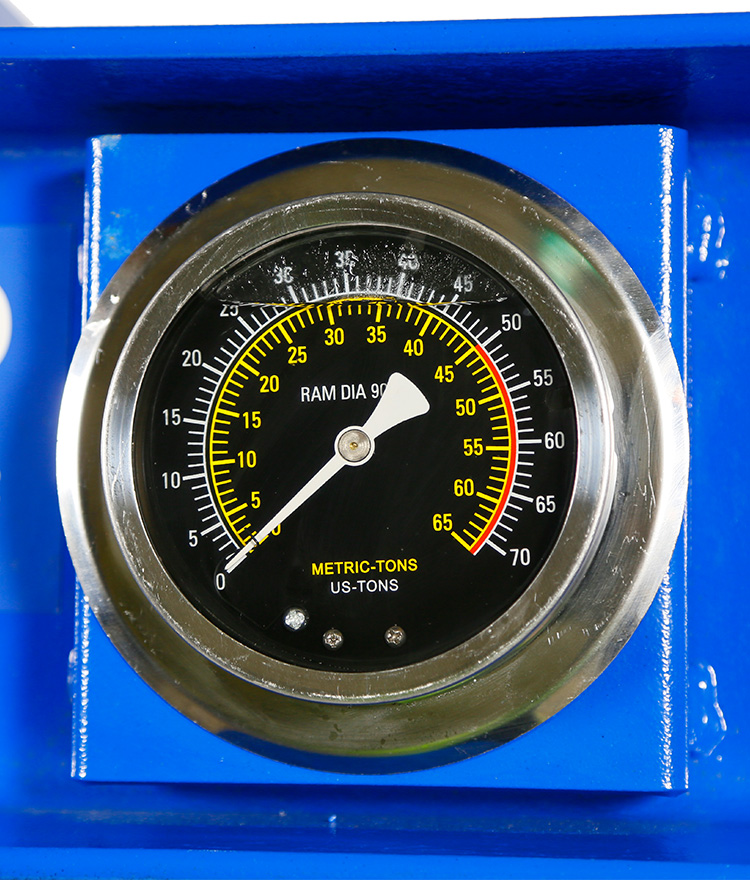

100mm pressure gauge
Polished pneumatic aluminium air motor
Bed winch for easy raise and lower adjustment
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
Paint is oil, grease and dirt-resistant for easy cleanup
High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
Piston-ram is treated and polished and fitted with backup ring, preventing load from falling slowly or bypassing oil drift
Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures
Integrated overload protection valve keeps from overloading the system
Double spring ram return for fast ram retraction

Specifications:

Safe Working Capacity: 50,000kg
Working Range: 137-837mm
Overall Height: 1700mm
Overall Width: 1290mm
Overall Depth: 745mm
Bed Outside: 356mm
Bed Inside: 210mm
Bed Width: 713mm
Piston Ram Stroke: 190mm
Ram Diameter: 95mm
Bed Height Settings: 6
Operating Air Pressure: 110-125 psi
Nett Weight: 271kg
Carton: 1900 x 945 x 490mm
Gross Weight: 305kg

Intended Use

Ideal for straightening, stamping, bending and pressing any component that is difficult to handle.

Print version Owners Manual Product Guide Bleeding Instructions Lubrication Guide Product Information Tips
