Clutch Jack - 130kg
- Product Code: BCJ130
- Brand: Borum Industrial
NEW PRODUCT!

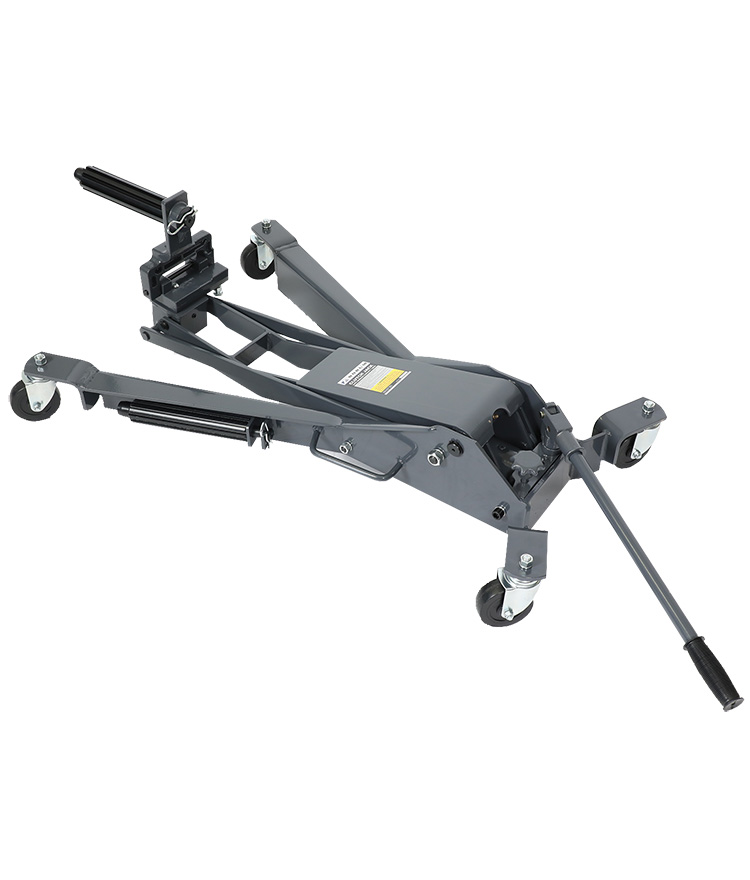

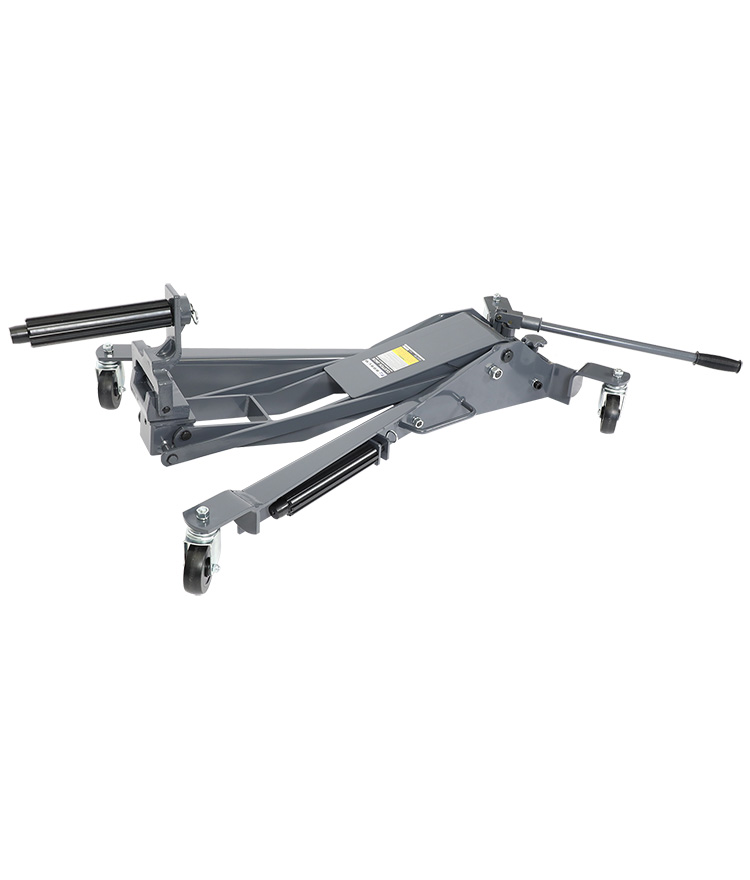

The Borum Industrial 130kg Hydraulic Clutch Jack is perfect for earthmoving equipment and truck clutch and/or flywheel installation and removal. It features two fully adjustable splines, smooth, manually operated hydraulic lifting and lowering and four 360° swivel caster wheels for better load positioning. The ergonomic multi position rotating jacking handle makes overall maneuverability simple and efficient in a busy workshop.
Features
- Designed for lifting, lowering & installing/removing heavy vehicle clutch/flywheel assembles
- Frame is constructed of industrial-grade steel and built to exacting standards for quality and durability
- High quality hydraulic steel jacking cylinder results in low physical effort oil needed to lift load
- Industrial strength hydraulic system is protected from overload damage
- Filled with industrial grade 32 hydraulic fluid
- Rugged heavy industrial wheels and full swivel ball bearing castors

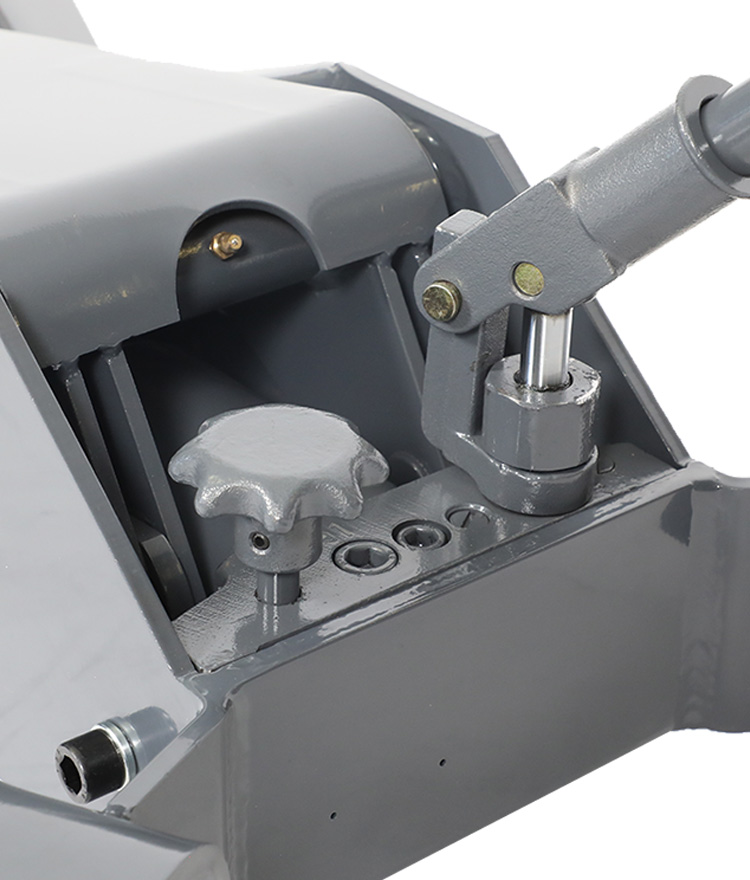

- User-friendly rotating pumping handle for maximum multi-directional operation
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint is oil, grease and dirt-resistant for easy cleanup

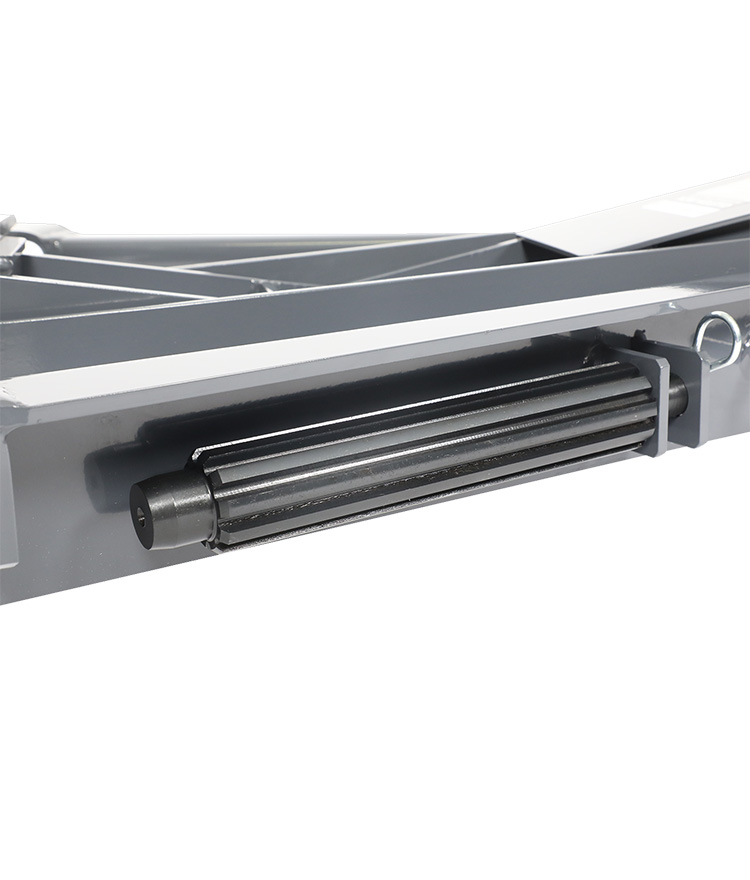

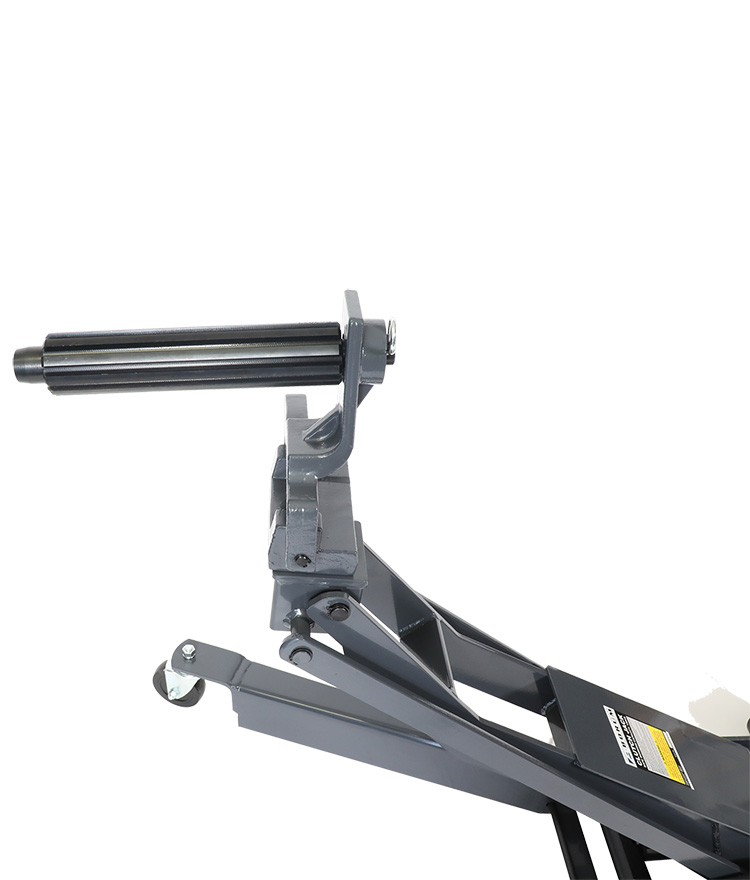

- Two 10-tooth alignment splines included which conveniently stores on chassis
Specifications
- Safe Working Capacity: 130kg
- Minimum Height: 288mm
- Maximum Height: 980mm
- Chassis Dimensions: 1041 x 609mm
- 1 x 2" Alignment Spline Included (10 Tooth)
- 1 x 1-3/4" Alignment Spline Included (10 Tooth)
- Carton: 1070 x 710 x 220mm
- Gross Weight: 62kg
Intended Use
This clutch jack is designed to remove, install & transport (in the lowered position) 14" and 15-1/2" single and double disk clutches and/or flywheel assemblies on & off vehicles
Print version
Owners Manual Product Guide
About the Borum brand
Our “heavy duty commercial” range of Borum Industrial equipment has been manufactured to exacting standards for the past 40 years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport, mining, earthmoving and railway environments. Our Borum Industrial range of equipment is focused on achieving superior professional standards, reliability, quality, and are covered by a 12 month trade use warranty.
