Giant OTR Bead Breaker 13000kg
- Product Code: BTBB13
- Brand: Borum Industrial
The Borum Industrial Hydraulic Giant OTR Tyre/Earthmover Bead Breaker is designed to work on most multi-piece rims 25-51" in diameter with pry bar pockets. Delivers up to 13,000kg of force with up to 10,000psi to break the toughest beads in seconds. Clamps to the wheel rim and utilises hydraulic pushrod to break the bead.The giant bead breaker works directly on the bead of the tyre and will not damage the tyre if used correctly.

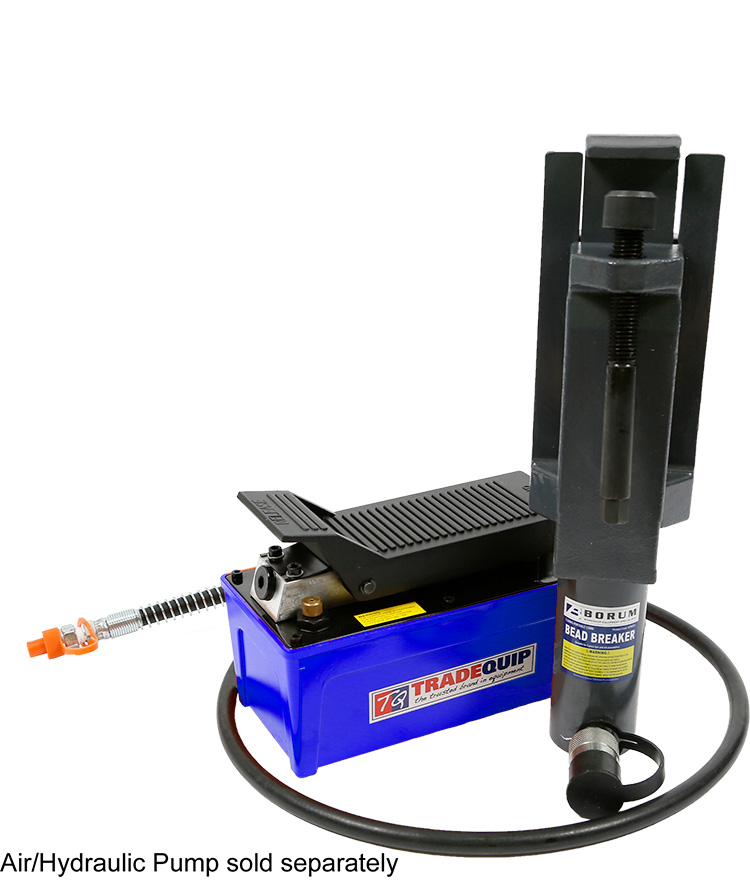

The Borum Giant Bead Breaker is designed to break earthmover tyre beads with multi-piece rims when used with the TradeQuip 2054T 10,000 psi air/hydraulic pump. (Sold separately)
Features
- Economical solution for earthmover wheels 25” – 51” multi-piece rims with pry bar pockets
- Hydraulically clamps on wheel
- Design prevents lip kicking out
- Durable steel construction
- Lightweight, compact and portable design is safe and easy to use
- Hydraulic power breaks stubborn beads in seconds
Specifications
- Safe Working Capacity: 13,000kg
- Rated Pressure: 10,000psi
- Suitable for OTR Earthmover Rim Sizes: 25 - 51" Diameter
- Pressure Connection: 3/8" - 18NPTF
- Used on 5-piece rims 635 to 1,295 mm (25'' - 51'') with pry bar / bead loosening pockets
- Ram Stroke: 105mm (4-1/4'') stroke ram
- Hydraulic Oil Capacity: 500ml
- Weight: 13kg
- Carton: 485x185x130mm
Intended Use
Designed to be used for separating tyres from rims on a large range of tyre and rim combinations on tractors, trucks, buses, earth movers or other similar vehicles. The inner-most surface of the tyre bead creates the air seal between the tyre and rim.
Print version
Owners Manual Product Guide Product Information Tips
About the Borum brand
Our “heavy duty commercial” range of Borum Industrial equipment has been manufactured to exacting standards for the past 40 years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport, mining, earthmoving and railway environments. Our Borum Industrial range of equipment is focused on achieving superior professional standards, reliability, quality, and are covered by a 12 month trade use warranty.
